Name: Marin 2022 Rift Zone 3 29
SKU: 402187

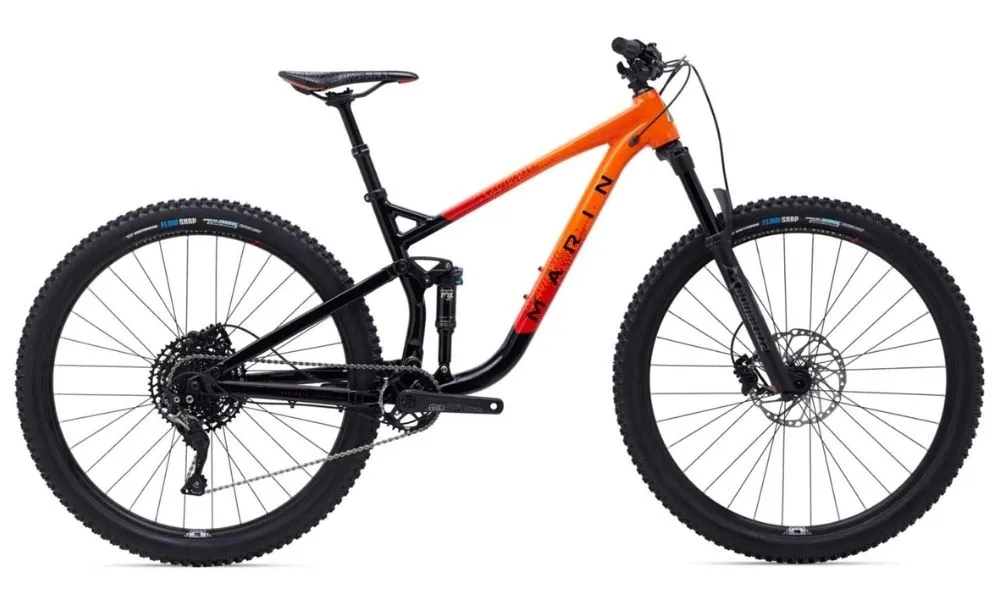

Marin 2022 Rift Zone 3 29

FAST PACED, EPIC RIDES

PUSHING THE ENVELOPE UP AND DOWN THE TRAIL

CHASING PERSONAL RECORDS

The Rift Zone is our most speed oriented MultiTrac bike, created for the rider looking for the speed and roll over capabilities of 29” wheels in a trail capable package. Long, low, and slack trail geometry is more aggressive than an XC race bike for more control at top speed, and more fun while chasing seconds.

Specifications

Marin 2022 Rift Zone 3 29

Frame

Colour: Black/Orange
Frame: Series 3 6061 Aluminum Frame, 29” Wheels, 125mm Travel, MultiTrac Suspension Platform, 148x12mm Boost Thru-Axle, 73mm Threaded BB w/ ISCG05 Tabs
Fork: Marzocchi Bomber Z2 29", Rail Damper with Sweep Adjustment, 130mm Travel, Kabolt Bolt-On Axle, 44mm Offset
Shock: Fox Float DPS, Performance Series, EVOL Air Spring, 3 Position Compression Adjustment, Rebound Adjustment, Custom Tune, 210x50mm, M8x25mm Hardware Top and Bottom
Weight: N/A

Drivetrain

Crankset: FSA GRID, Modular 1x, 32T Direct Mount Chainring, MegaTooth Technology, Mego EXO Spindle, Boost Spacing
Pedals: N/A
Chain: KMC X-12 Silver and Black
Bottom Bracket: Mego EXO 73mm BSA
Rear Derailleur: Shimano SLX SGS, Direct Attachment, 12-Speed
Front Derailleur: N/A
Derailleur Shifter: Shimano SLX, 12-Speed, SL-6100IR
Freewheel/Cassette: SunRace, 12-Speed, 11-51T, ED Black

Wheels

Tyres: Vee Tire Co, Flow Snap, 29x2.35, Tackee Compound, 72 TPI, Tubeless Compatible
Wheels/Rims: Marin Aluminum Double Wall, 29mm Inner, Sleeved Joint, Disc Specific, Tubeless Compatible
Hubs: Front: Forged Alloy, 110x15mm, 32H Rear: Forged Alloy, 148x12mm, Quad Sealed Bearings, 32H, Standard Freehub Body

Braking System

Brakes: Front: Shimano MT420, 4-Piston Hydraulic Disc Brake, 203mm Rotor Rear: Shimano MT420, 4-Piston Hydraulic Disc Brake, 180mm Rotor
Brake Levers: Shimano MT4100 Hydraulic Lever, I-Spec EV Compatible

Other

Handle Bar: Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back
Stem: Marin 3D Forged Alloy, 35mm
Seat Post: X-Fusion Manic, 1x Composite Remote, Size S 125mm Travel, Size M and L 150mm Travel, Size XL 175mm Travel, 30.9mm
Saddle: Marin Speed Concept

Geometry

Marin 2022 Rift Zone 3 29

S	M	L	XL
STACK	602.6	607.15	611.7	616.25
REACH	430	455	480	505
HEADTUBE ANGLE	65.5°	65.5°	65.5°	65.5°
HEADTUBE LENGTH	100	105	110	115
SEATTUBE ANGLE	76°	76°	76°	76°
SEATTUBE LENGTH	390	400	425	430
TOPTUBE EFFECTIVE	580.24	606.36	632.51	658.6
BB HEIGHT	344	344	344	344
BB DROP	34	34	34	34
CHAINSTAY	425	425	425	425
WHEELBASE	1158.92	1186	1213	1240.1
STANDOVER HEIGHT	691.84	697.1	717.83	721.97
FORK OFFSET	44	44	44	44
SEATPOST DIAMETER	30.9	30.9	30.9	30.9
HANDLEBAR WIDTH	780	780	780	780
STEM LENGTH	35	35	35	35
CRANK LENGTH	170	175	175	175
