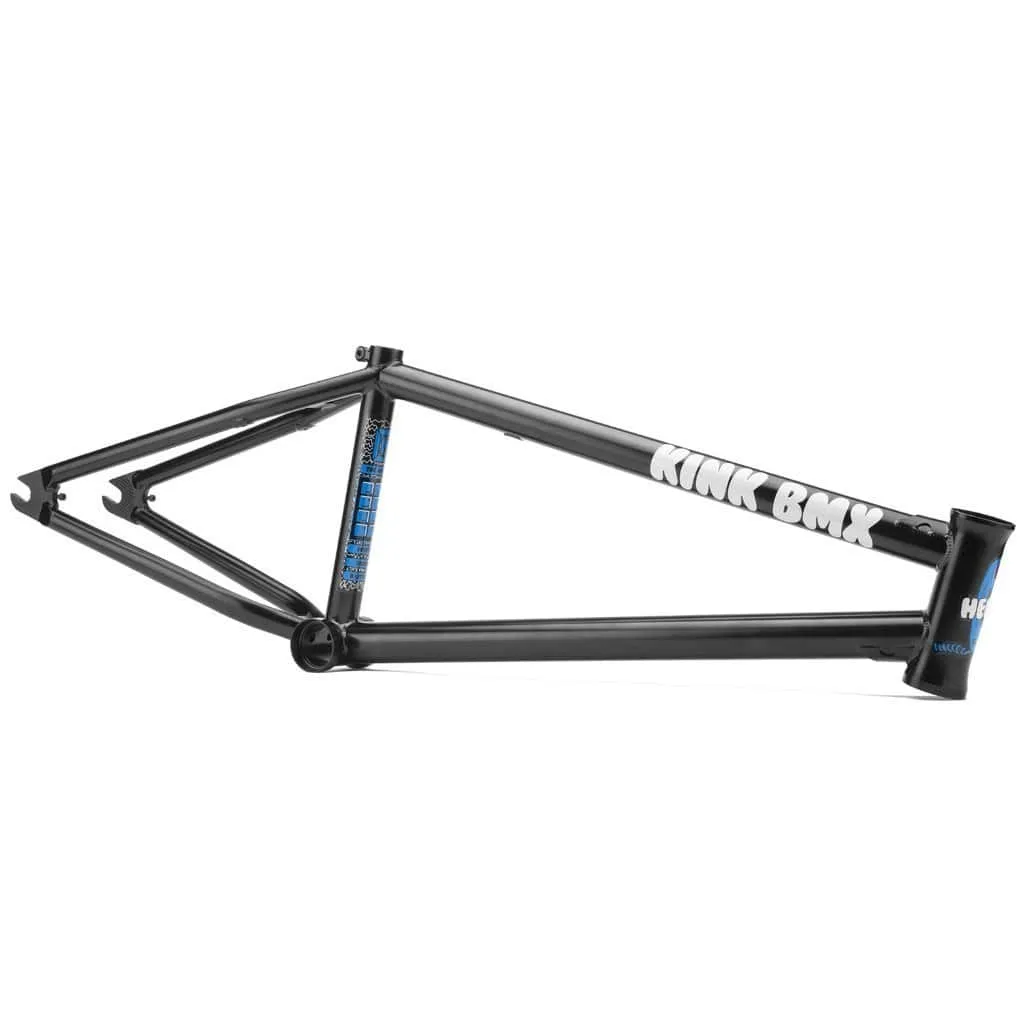

Kink Williams Frame - ED Black
Nathan Williams signature
Nathan's first signature frame from Kink features several subtle details that should not be overlooked. The 75.5° headtube and 12.75€ chainstay length makes the frame nimble and responsive without compromising on tyre clearance, fitting up to 2.5€ tyres. Featuring; double butted top and downtubes with gussets on both, chainstay and seatstay bridges, integrated seat clamp, integrated chain tensioners, custom seatstay bridge badge, anti-slip interior dropout knurling and fitment locations for removable brake hardware.
Weight
2.16kg/ 4.76lbs
Spec
Seamless Sanko 4130 Chromoly Steel75.5° head tube angle
71° seat tube angle
9" standover
12.75" chainstays (slammed)
11.7" bottom bracket height
Top tube and down tube gussets
Oval chainstays to fit 2.5" tyres
Integrated seat post clamp
Investment cast seat stay bridge and chain stay bridge
Investment cast dropouts and integrated chain tensioners
Anti-slip inner dropout knurling
Accepts through-bolt removable brake mounts
Headtube tapped for Gyro tabs
Top tube sizes: 20.5€/ 20.75"/ 21€/ 21.25"
