Item Description

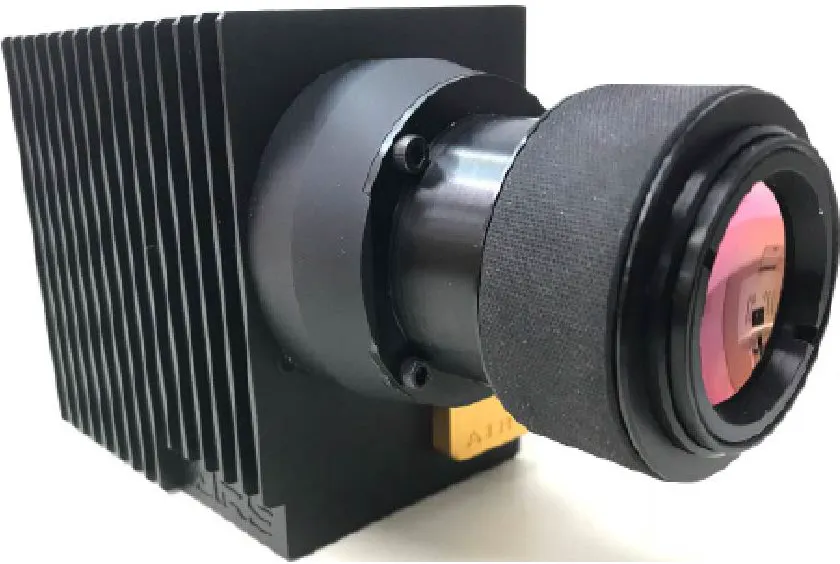

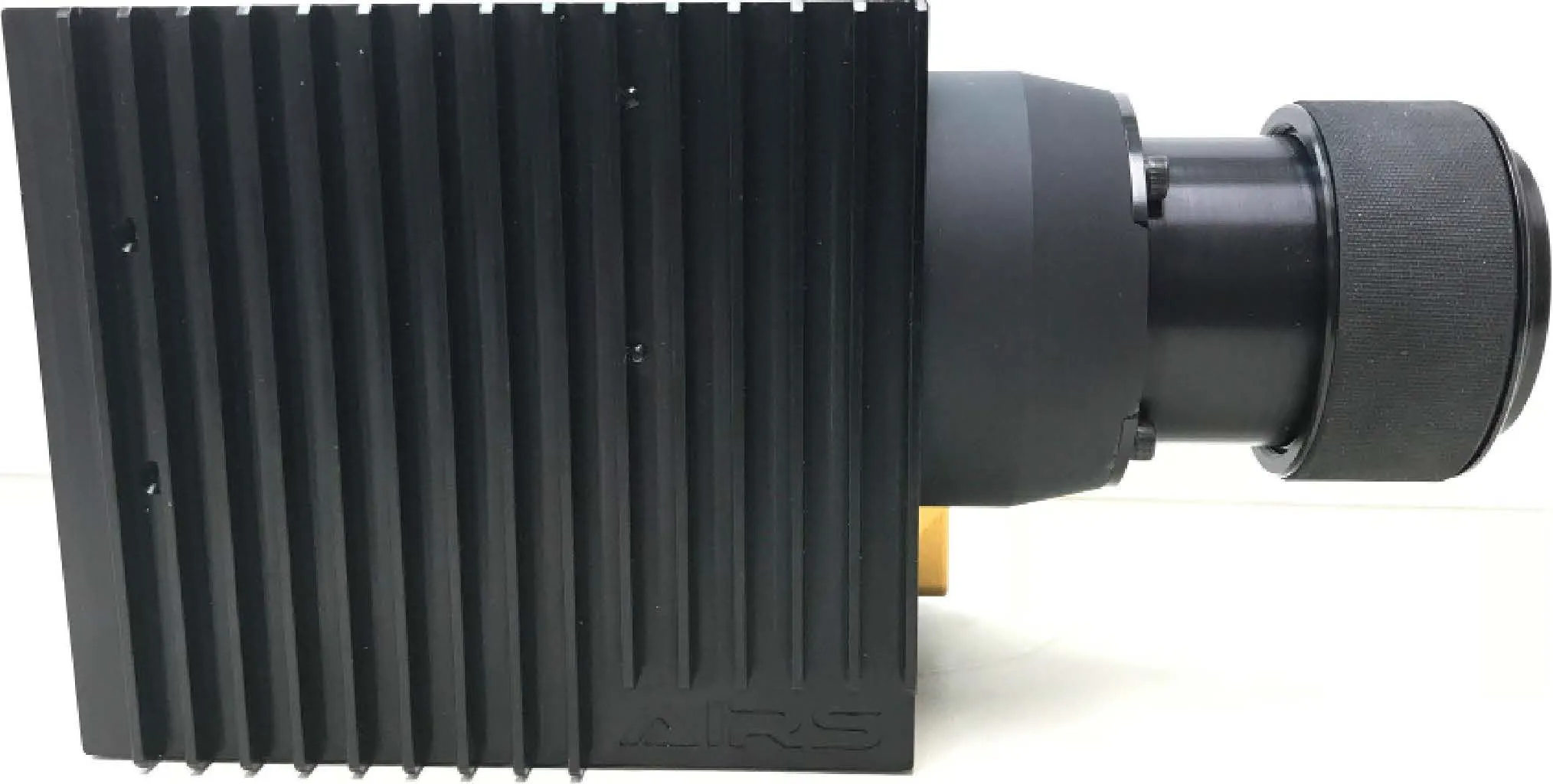

The HD hi-Nyx HOT MWIR Camera is a 1280 x 1024 format HOT MWIR Thermal Imaging Camera with 12 micron pixel HOT MWIR (Type II SLS, nBn) IRFPAs. The standard optics is an f/3 25mm lens with a 47 degree FOV. The optics can be reconfigured to your application requirements.
AIRS' cameras and integrated detector cooler assemblies (IDCA) offer high performance LWIR, MWIR and SWIR imaging utilizing state of the art MCT, nBn, lnSb or T2SLS IRFPAs. The sensitivity and resolution of the hi-Nyx series can meet the most demanding imaging needs. State of the art technologies, designs, and vertically integrated manufacturing allow AIRS to provide system integrators advanced, mission-critical imaging capability.
Product Technical Specs
- Summary specifications are below for the camera
- Additional fields of view are available
- View the product catalog and download it at the Download PDF tab
- Please contact us with any questions or for assistance via our or at 617-566-3821
| Optics | 43 degrees, 25mm focal length, f/3 cold shield, 3um LP cold filter bandpass. Optics can be customized to your requirements. |
| IRFPA | 1280 (h) x l 024 (v), HOT MWIR: T2SLS, nBn 2-5um |
| Sensitivity | 25 mK |
| Frame rate | 60 Hz |
