Name: Dometic Perfectview M 75L Monitor and Wiring Loom Only - No Longer Available
SKU: 402082

The most reliable reversing monitor on the market - bar none.

This is the only brand of cabled camera we will install as we have no come backs and issues.

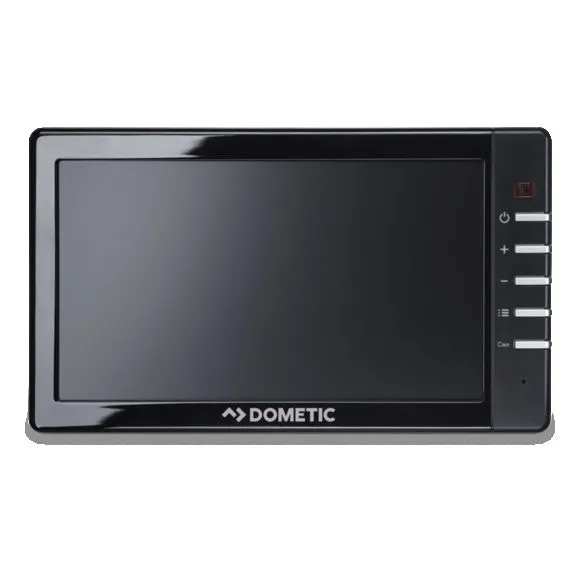

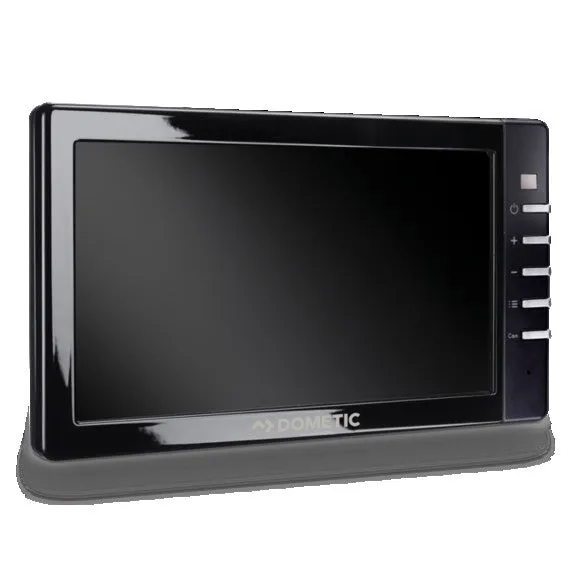

DIGITAL 17.8 CM LCD MONITOR
Digital LCD technology with super-bright, energy-saving LED backlighting for excellent image quality in all light conditions. This flat and compact 17.8 cm monitor gives the perfect view for safe maneuvering. It is the core component of Dometic reversing systems.

EVERYTHING IN SIGHT – DAY AND NIGHT
Maneuvering a bulky vehicle can be tough. Here is a reliable assistant – the Dometic PerfectView M 75L LCD monitor. It gives drivers a clear view of what's happening behind the vehicle with its bright, high-contrast 17.8 cm display. The monitor is easy to read in all light conditions, even in low temperatures. The M 75L has three camera inputs, one of them with signal recognition – enabling a side camera to be activated via the indicator light. The automatic trailer recognition comes in handy when you travel with a trailer in tow.

Specification:

7” Ahd Lcd Colour Monitor

GENERAL:

SKU number 9600012898
Model M75L AHD
Model on label M75L AHD
Scope of delivery Monitor, stand, connection cable, installation mat, manual
Product Description Digital 17.8 cm LCD monitor

DIMENSIONS:

Dimensions product depth 26 mm
Dimensions product height 110 mm
Dimensions product width 190 mm
Net weight 0.4 kg

ELECTRICAL:

Input voltage (DC) 12/24 V
IP class IP40

PERFORMANCE:

Camera inputs 3
Brightness adjustment Automatic via LDR
Picture brightness 800.00 cd/m²
Resolution 614000 px
Video standard PAL/NTSC Auto
Vibration resistance 6.00 g
Operating temperature min -20.00 °C
Operating temperature max 70.00 °C
Mirrored Picture Function Can be set

ADDITIONAL:

Colour Black
Certificates ECE R10

LOGISTICS:

EAN-13 7315091408899
Dimensions parcel depth 195 mm
Dimensions parcel height 105 mm
Dimensions parcel width 275 mm
Parcel weight 1.4 kg

SEE MORE AND DRIVE SAFER
PerfectView L-series monitors ensure superb image quality during the day and night, even when temperatures are low. The LCD displays with Analog High Definition (AHD) technology and LED backlighting give you an exact view of what is happening around your vehicle. Its bright, high-contrast display is pleasant to the eye, and easy to read in all light conditions. You can connect up to three cameras to have everything in sight.

SAFE CONNECTION
Lockable plug-in connectors are both dust and waterproof

CONVENIENT HANDLING
Precisely adjustable ball mount for optimal positioning of the monitor

EASY TO USE
With illuminated keys and day-night switching

ANTI-REFLECTION TECHNOLOGY
Bright, high-contrast display ensures excellent readability in all light conditions

Digital LCD technology with LED backlighting achieve top image quality – day and night
Three cameras can be connected for safe all-around vision
Image settings can be saved separately for each camera input
Automatic trailer camera recognition
Elegant monitor base with concealed cable routing
Mirror function can be set to give you a familiar rear mirror view

The M 75L has three camera inputs, one of them with signal recognition – enabling a side camera to be activated via the indicator light. The automatic trailer recognition comes in handy when you are towing.
